Worcester 3/4” 466TSW Stainless Ball Valve R17 CWP1000 TFE Seat Inline NPT

Worcester 3/4” Ball Valve – Model 466TSW R17 – 316 Stainless Steel – TFE Seat – 1000 PSI CWP

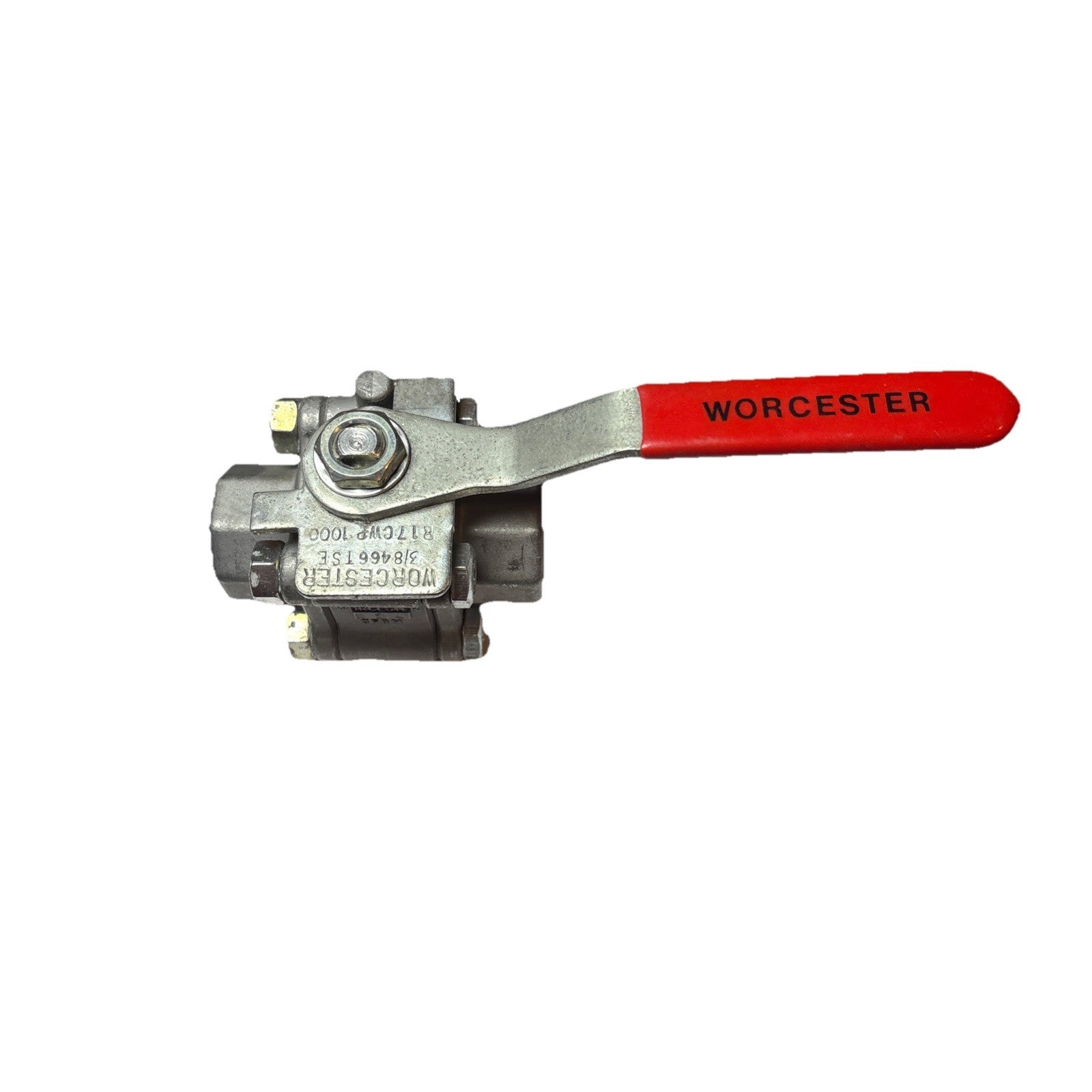

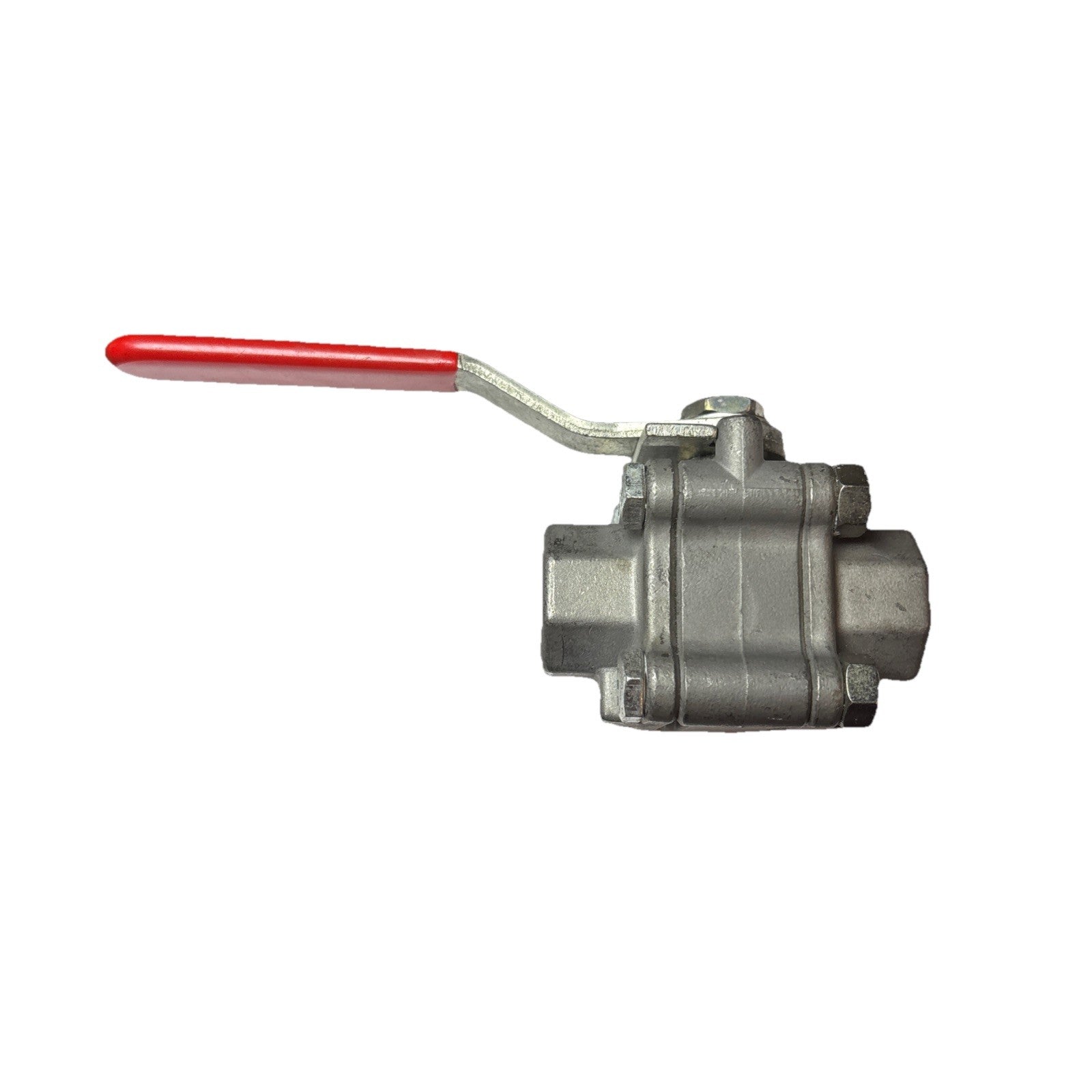

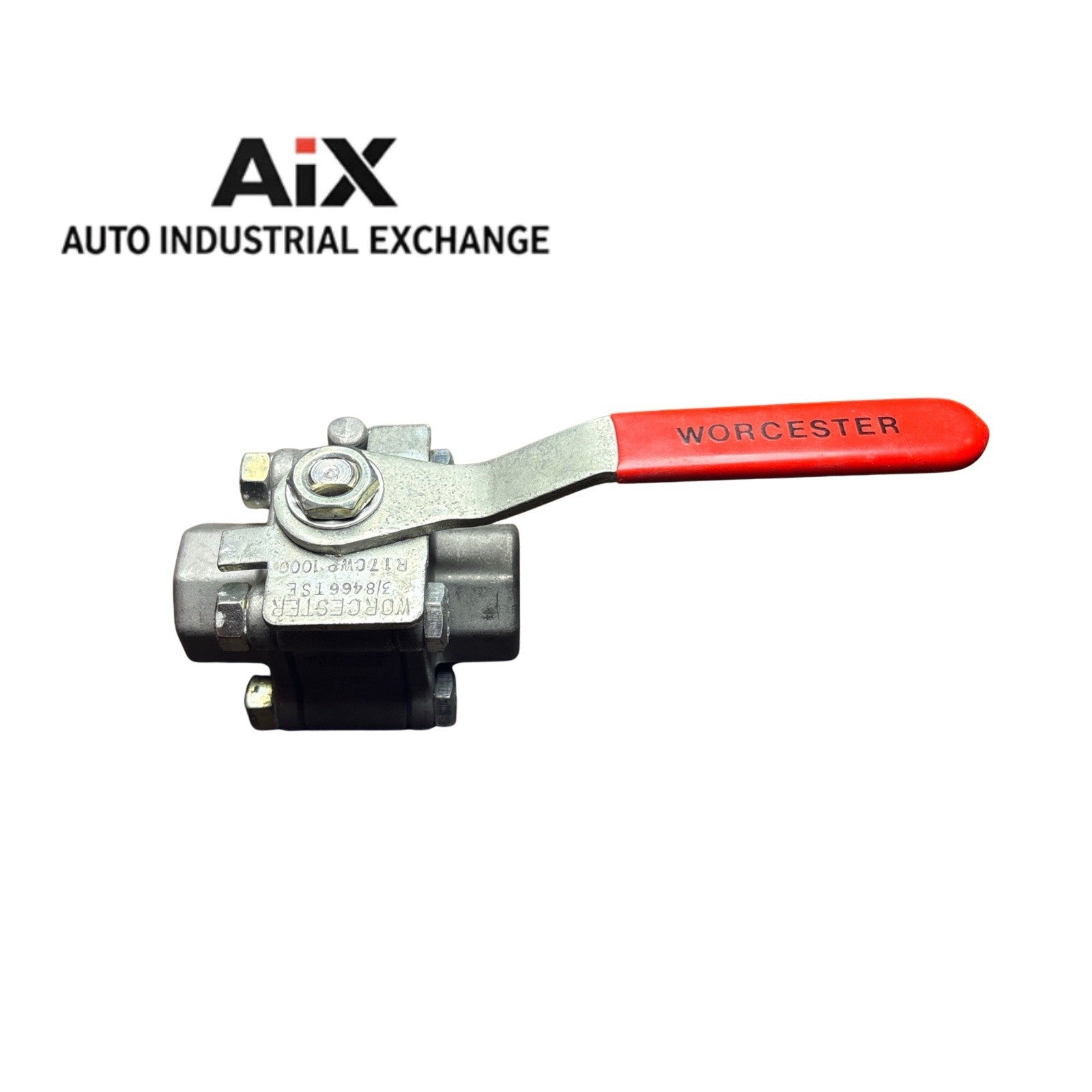

This listing is for a Worcester Controls / Flowserve 466TSW R17 ball valve, featuring a 3/4” NPT threaded connection, full port flow, and TFE seats. This valve is constructed from 316 stainless steel and is rated for 1000 PSI Cold Working Pressure (CWP), with a max temperature of 400°F. It includes a lockable red lever handle and is designed for industrial and high-cycle applications.

This valve is part of Worcester’s well-regarded 44/45/466 Series, known for robust performance in harsh environments, including chemical processing, food & beverage, bio/pharma, OEM skids, plant utilities, and lab gas systems.

⸻

Technical Specifications:

• Manufacturer: Flowserve / Worcester Controls

• Model: 466TSW R17

• Valve Type: 2-piece inline ball valve

• Port: Full port

• Size: 3/4” NPT

• Body Material: Stainless Steel (ASTM A351 CF8M / 316 SS)

• Trim: Stainless steel

• Seat Material: TFE (Teflon)

• Connection: Female NPT x Female NPT

• Handle: Red lever, lockable design

• CWP Rating: 1000 PSI

• Max Temperature: 400°F (204°C)

• Operation: Manual

• Condition: New open box (unused, no OEM packaging)

⸻

Applications Include:

• Chemical processing

• OEM equipment & skidded systems

• Compressed air, nitrogen, or process gas lines

• Food and beverage processing

• Pharma and biotech systems

• Plant utility water, steam, or vacuum lines

• HVAC, filtration, and CIP (Clean-in-place) setups

⸻

Cross References / Compatible Alternatives:

• Swagelok 63 Series

• Parker H Series and HBV Series

• Apollo Valves 77-100 Series

• Spirax Sarco SBV stainless inline valves

• Sharpe Series 50

• NIBCO 585-70-LF

• Direct fit for any standard 3/4” NPT full port inline stainless ball valve install

• Compatible with threaded stainless pipe, Tri-Clamp to NPT adapters, and manifold blocks

⸻

Condition:

This is a new, open-box valve pulled from a high-grade surplus inventory lot. It has never been installed or used, but may show light signs of handling or shelf storage. No original packaging is included.
