Swagelok SS-HBS4-C Bellows Sealed Valve 1/4” Tube Fitting NC Actuator SC-11

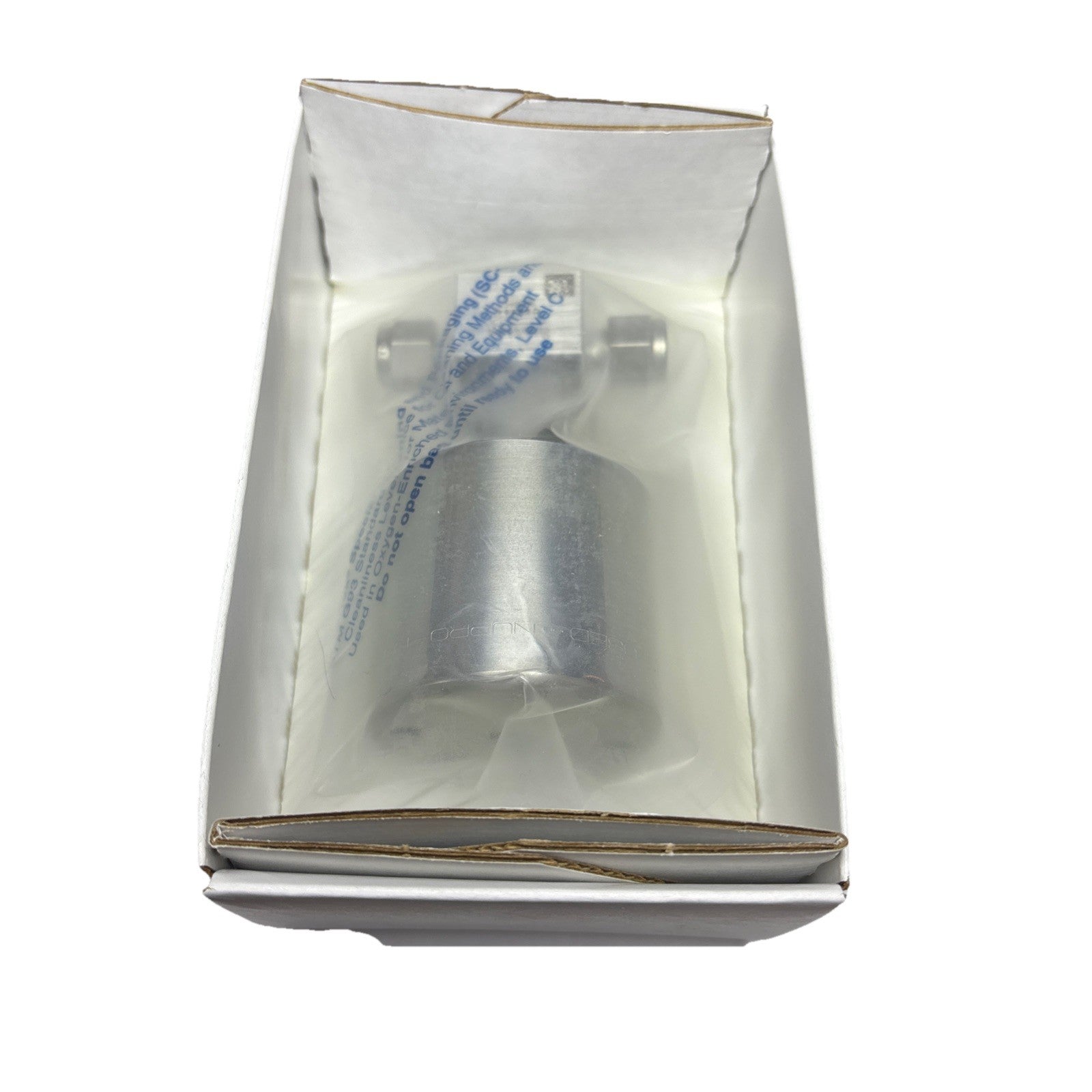

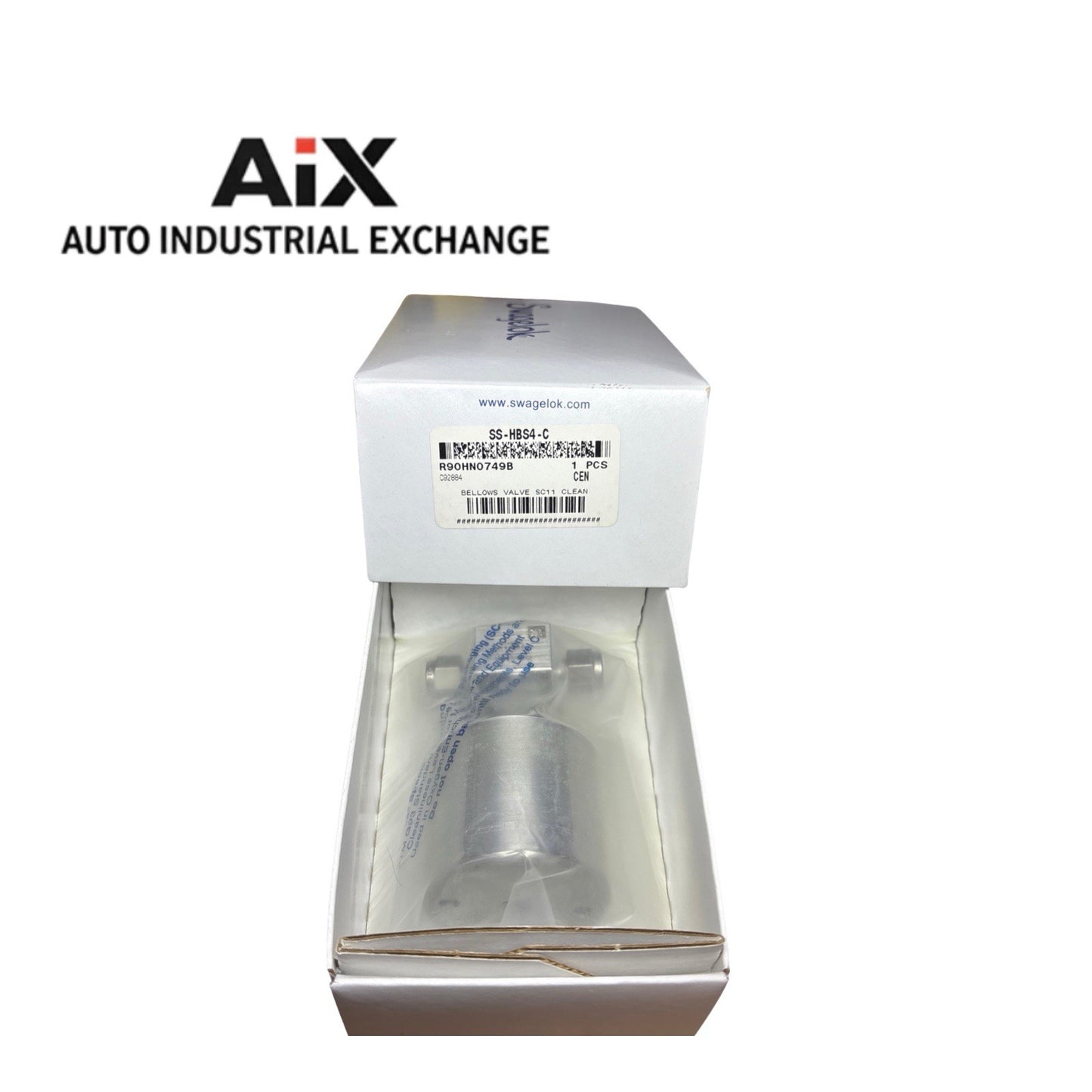

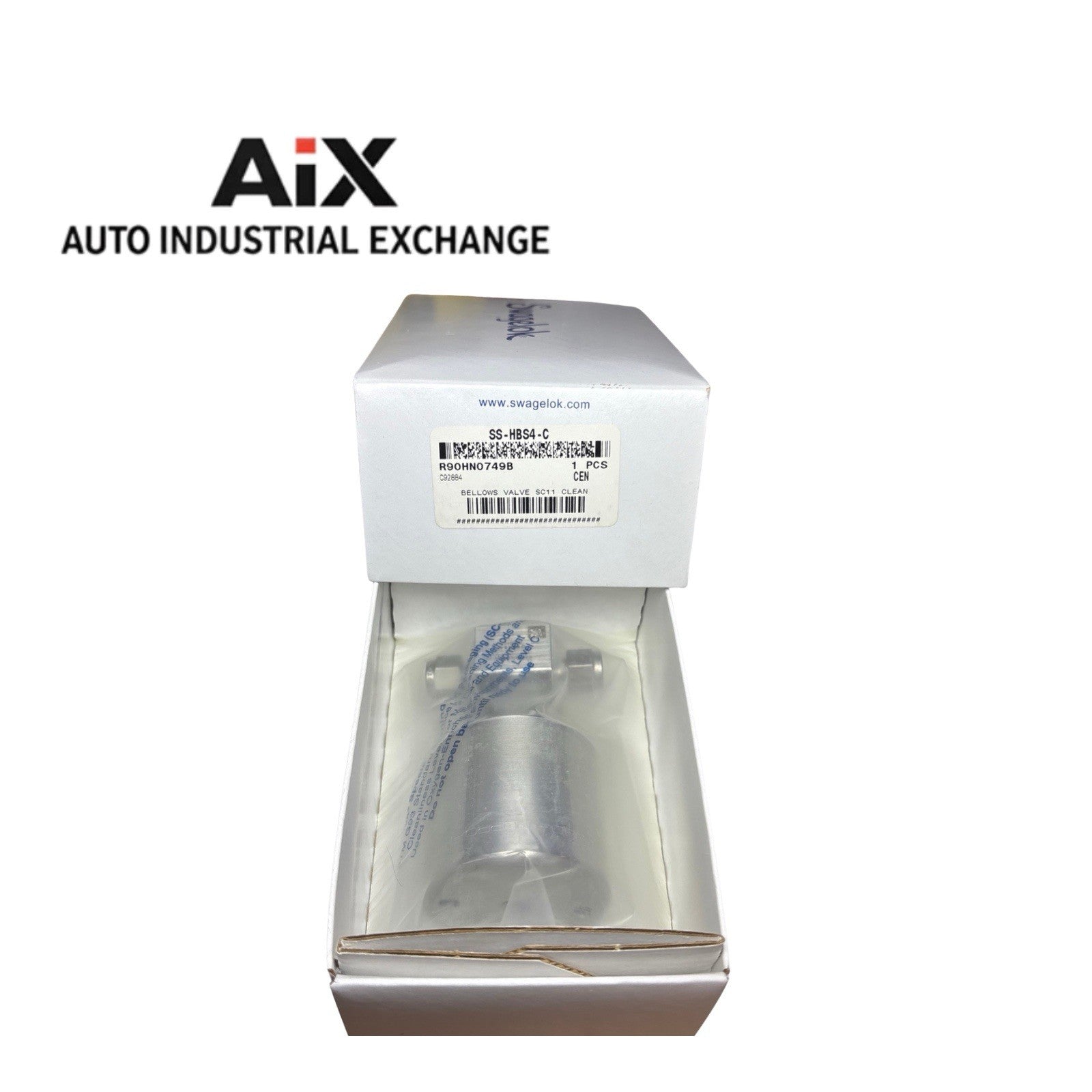

Swagelok SS-HBS4-C high-pressure bellows sealed valve is brand new and unused. It remains sealed in the original Swagelok box with SC-11 cleaning and packaging. Opened only for inspection and photos.

⸻

Product Specifications:

• Manufacturer: Swagelok

• Part Number: SS-HBS4-C

• Valve Type: High Pressure Bellows Sealed Valve

• Connection Size: 1/4 in.

• Connection Type: Swagelok® Tube Fitting (Tube x Tube)

• Actuator Type: Pneumatic

• Actuator Model: HB Series

• Operation Mode: Normally Closed, Spring Return

• Body Material: 316L Stainless Steel

• Bellows Material: 316L Stainless Steel

• Gasket: PTFE-Coated 316L Stainless Steel

• Stem Tip: PCTFE, Conical

• Cleaning Process: SC-11 (Special Cleaning and Packaging)

• CV Rating: 0.3

• Flow Pattern: Straight (2-way)

• Max Temperature: 150°F (65°C)

• Min Temperature: -40°F (-40°C)

• Max Pressure Rating: 3220 PSIG @ 150°F / 221 BAR @ 65°C

• Room Temp Pressure Rating: 3500 PSIG @ 100°F / 241 BAR @ 37°C

• Surface Finish: Ra 20 µin

• Testing: Helium leak tested to SCS-00020

⸻

Key Features:

• Precision-engineered for high-pressure fluid and gas systems

• Leak-tight operation with metal bellows design

• SC-11 cleaned for critical applications

• Ideal for process control, instrumentation, and clean service systems

• Swagelok quality backed by industry-standard performance

⸻

Condition:

• Brand new open box

• OEM packaging included

• Factory-sealed valve remains untouched inside

• Ships from AIX Global with care and professionalism

⸻
