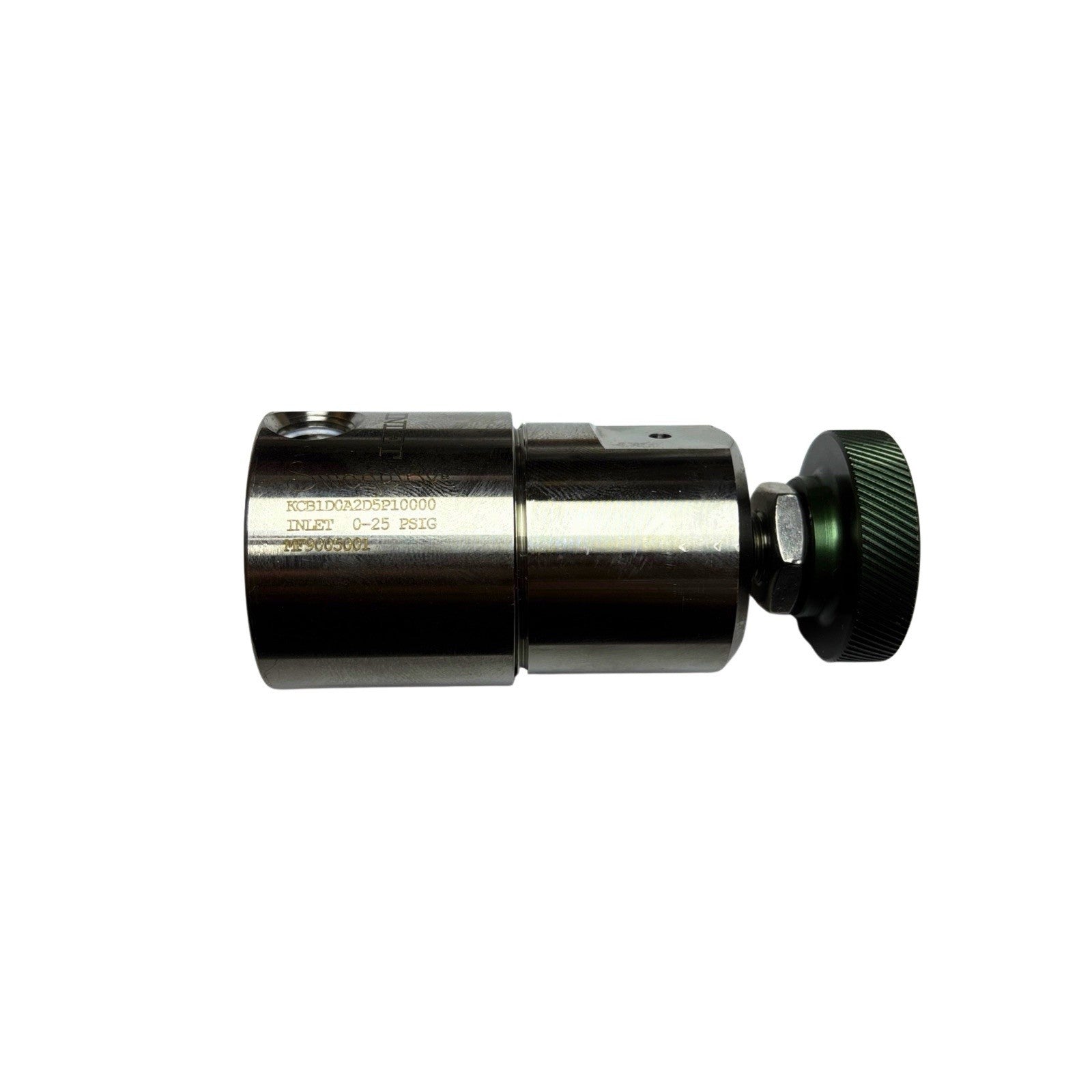

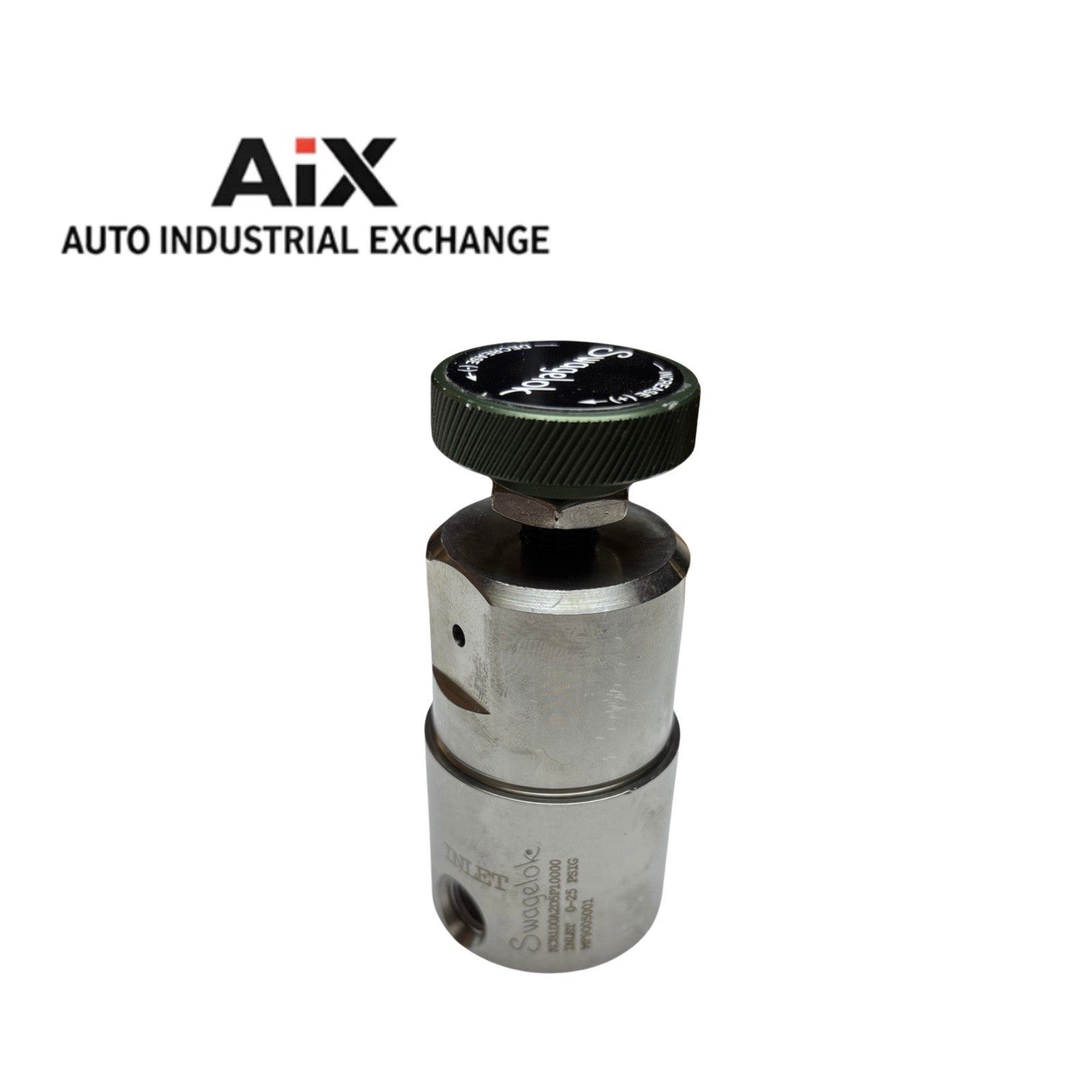

Swagelok KCB1DOA2D5P10000 Compact Back-Pressure Regulator 316 SS

Swagelok KCB1DOA2D5P10000 Compact Back-Pressure Regulator, a special-order configuration from Swagelok’s KCB Series. Built with a 316 stainless steel body and precision-engineered internals, this regulator is designed for accurate back-pressure control in demanding applications. Units in this configuration are rarely available on the secondary market, making this a prime opportunity for industrial, laboratory, or process control buyers seeking genuine Swagelok quality.

⸻

Key Specifications

• Part Number: KCB1DOA2D5P10000

• Series: KCB – Compact Back-Pressure Regulator

• Body Material: 316 Stainless Steel

• Port Size / Type: 1/8” Female NPT (per standard KCB configuration)

• Outlet Range: 0–25 psig (per body engraving)

• Max Inlet Pressure: Special order – typically up to 3,600 psig in stainless models

• Seat Material: PCTFE / Kalrez (typical for low-pressure, high-precision applications)

• Sensing Mechanism: Stainless Steel Piston

• Handle Style: Knob

⸻

Applications

• Analytical instrumentation

• Gas and liquid sampling systems

• Semiconductor processing tools

• Research laboratories

• General industrial process control where precise back-pressure regulation is critical

⸻

Why This Model Is Special

The KCB1DOA2D5P10000 variant is not widely listed in Swagelok’s standard catalogs. It appears to be a special configuration—likely built to customer-specified outlet ranges, seat materials, or cleaning standards. This makes it hard to source, even directly from Swagelok, without a custom order.

⸻

Performance & Build Quality

Swagelok regulators are known for:

• Tight pressure control even under fluctuating inlet conditions

• Corrosion resistance via 316 SS construction

• Compact footprint for tight-panel installations

• High cycle life with minimal maintenance requirements

Compared to competitors like Parker Veriflo, Tescom (Emerson), or Bürkert, Swagelok’s KCB series often offers:

• Better sealing integrity at low pressures

• Shorter lead times for replacement components

• More consistent Cv values in low-flow regimes

• Widely available maintenance kits and global support
