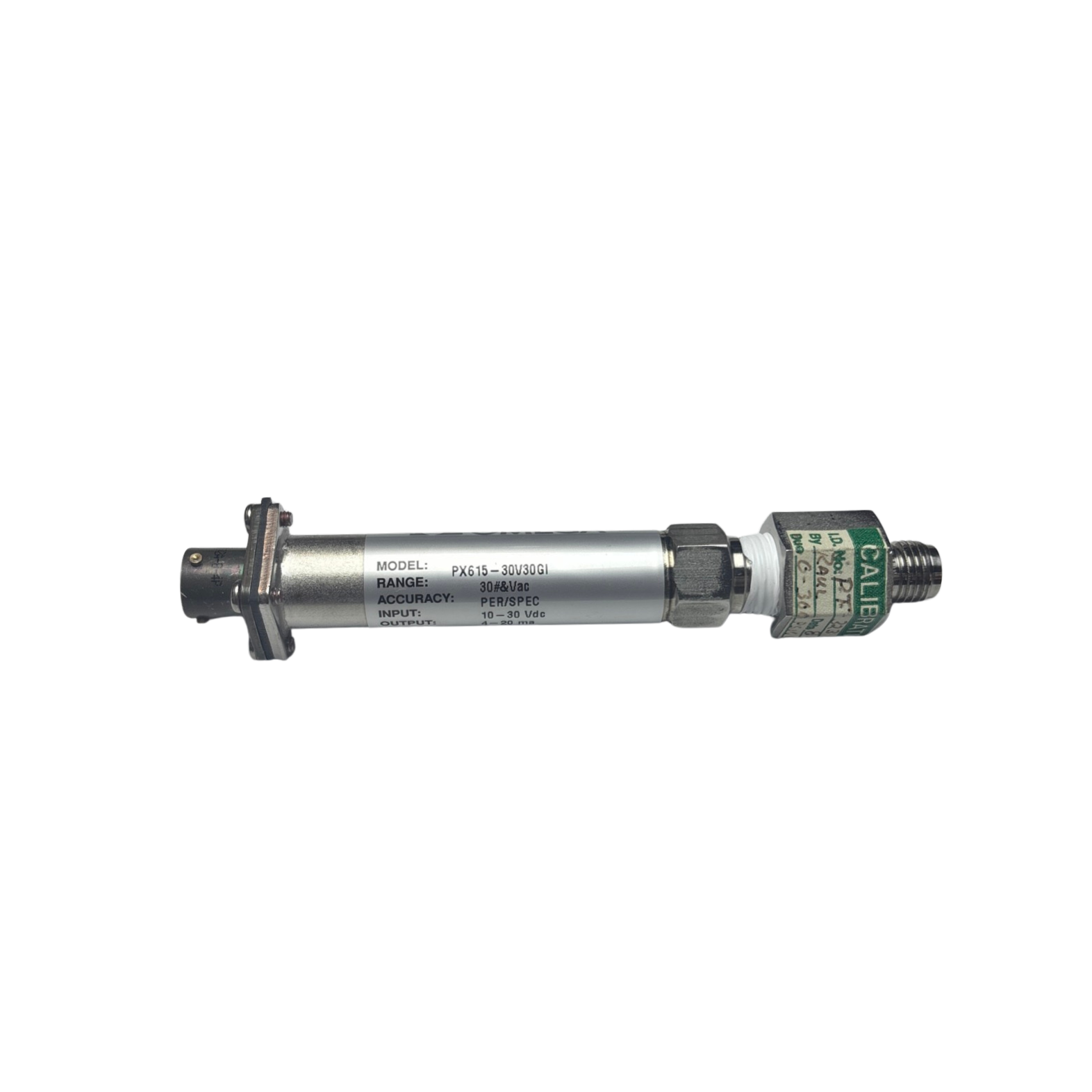

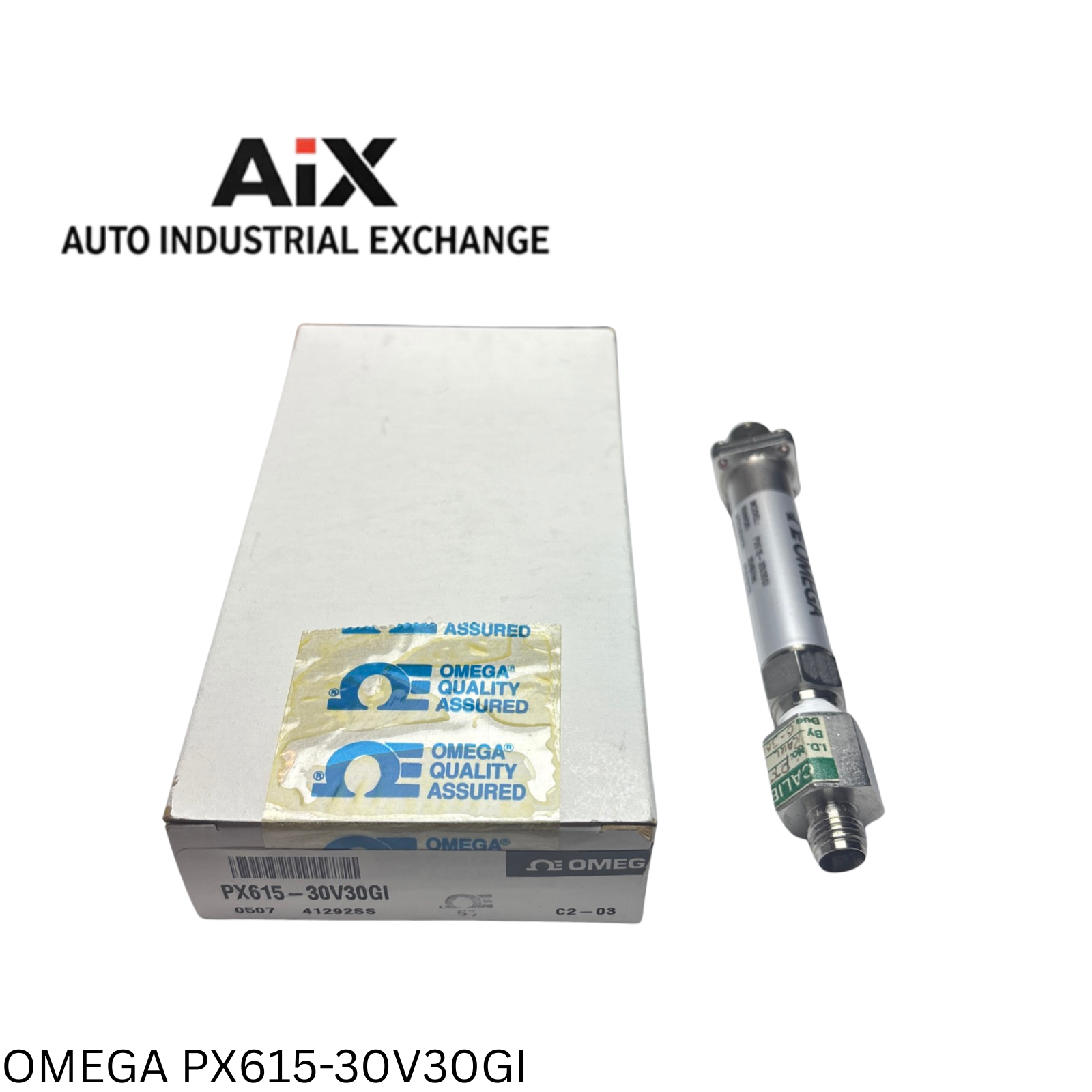

Omega PX-615-30V30GI Stainless Steel Industrial Pressure Transducer 30V

This high-performance pressure transducer is designed for precision measurement in demanding industrial environments. Built with a durable 17-4PH stainless steel diaphragm and 300 series stainless steel case, it provides long-term stability, repeatability, and resistance to harsh operating conditions. Ideal for hydraulic, pneumatic, and process control systems requiring 4-20 mA output and rugged durability.

Features:

• Excitation range: 10 to 30 VDC unregulated

• 4–20 mA 2-wire output for reliable signal transmission

• High durability: 100 million+ cycles

• Fast 5 ms response time

• Stainless steel construction ensures corrosion resistance and strength

• Compact, sealed design for industrial applications

Specifications:

• Excitation: 10–30 VDC (unregulated)

• Output: 4–20 mA (2-wire)

• Supply Current: 20 mA

• Insulation Resistance: 100 MΩ @ 50 V

• Accuracy: ±0.4% BFSL (non-linearity, hysteresis, non-repeatability)

  • ±1.0% Terminal Point Method (includes all errors)

• Hysteresis: ±0.2%

• Repeatability: ±0.05%

• Stability: ±1.0% per year

• Durability: 100 million cycles

• Operating Temp: -48 to 90 °C (-55 to 195 °F)

• Compensated Temp: -29 to 82 °C (-20 to 180 °F)

• Thermal Zero Effect: ±0.07% FS/°C

• Thermal Span Effect: ±0.07% FS/°C

• Proof Pressure:

  • 15–2000 psi = 200% FS

  • 3000–5000 psi = 150% FS

  • 7500–20000 psi = 120% FS

• Burst Pressure:

  • 15–2000 psi = 800% FS

  • 3000–5000 psi = 500% FS

  • 7500–20000 psi = 500% FS

• Sensor Type: Thin film polysilicon gage

• Diaphragm: 17-4PH stainless steel

• Case: 300 series stainless steel

• Pressure Connection:

  • 15–10,000 psi: 1/4 NPT

  • 15,000–20,000 psi: female AMINCO fitting (9/16-18 UNF)

• Electrical Connection: 0.9 m (36") braided shield PVC cable or connector

  • Mating connector: PT06F8-4S (sold separately)

• Response Time: 5 ms

• Construction: Sealed (PX605 ≤500 psi vented to room)

• Weight: 128 g (4.5 oz) without cable

Applications:

• Hydraulic and pneumatic systems

• Industrial automation and process control

• High-pressure monitoring

• Laboratory and R&D equipment

• OEM system integration
