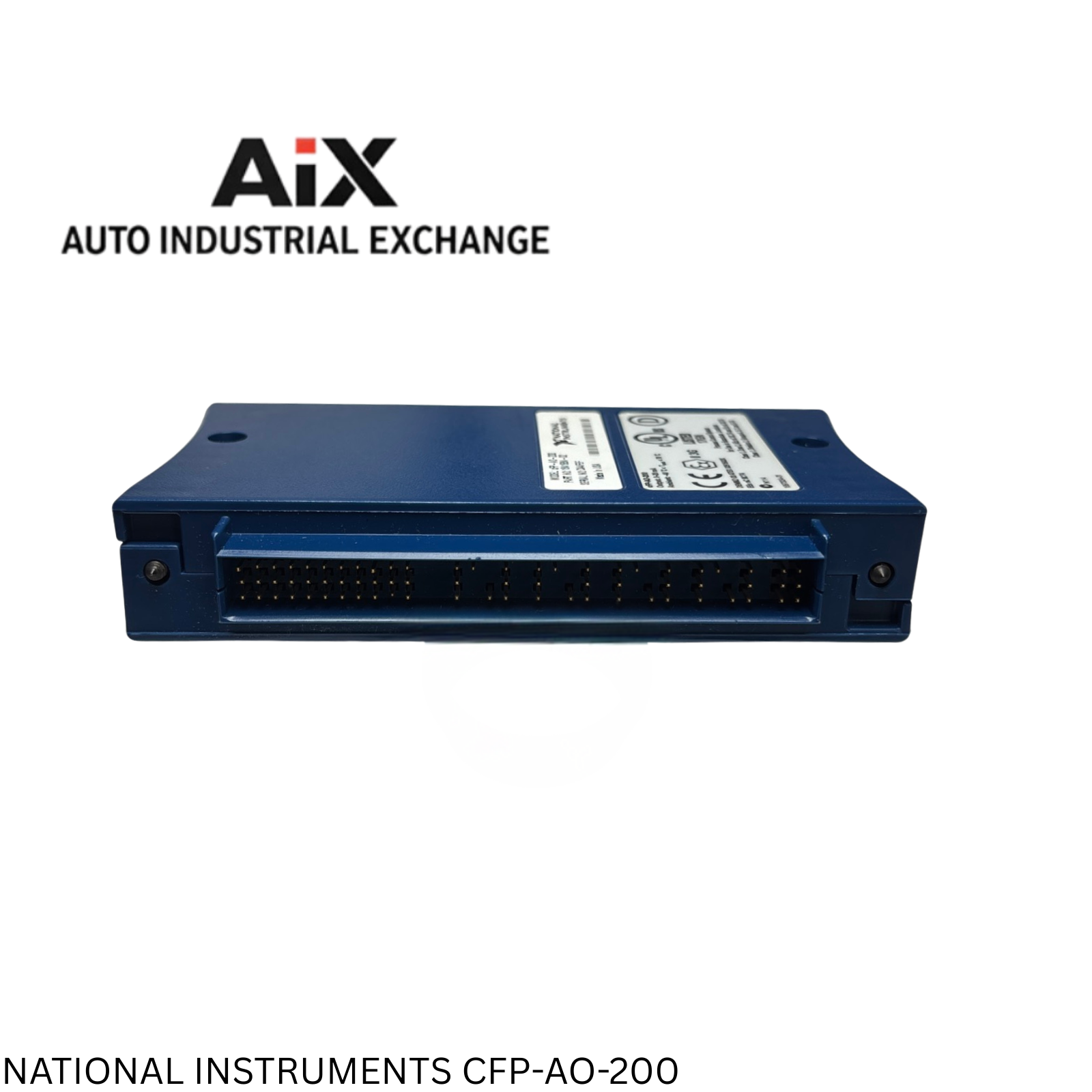

National Instruments CFP-AO-200 8 Ch Analog Output Module For Compact FieldPoint

National Instruments CFP-AO-200 8 Ch Analog Output Module For Compact FieldPoint

The National Instruments cFP-AO-200 (Part No. 777318-200) is a Compact FieldPoint Analog Output Module with 8 configurable current output channels. Each channel provides 0–20 mA or 4–20 mA output with 12-bit resolution, 200 Hz update rate, and built-in protection features for reliable industrial control. The cFP-AO-200 offers open-circuit detection, short-circuit protection, and HotPnP (plug-and-play) recognition for simplified setup and troubleshooting.

Key Features:

• Model: cFP-AO-200

• Part Number: 777318-200

• Channels: 8 Analog Output Channels

• Output Range: 0–20 mA or 4–20 mA (0.5 mA overranging)

• Resolution: 12-bit DAC

• Update Rate: 200 Hz (all channels)

• Conversion Rate: 200 updates/sec

• Slew Rate: 0.4 mA/µs

• Open-circuit detection with LED indicators per channel

• Short-circuit protected outputs

• HotPnP (plug-and-play) auto-detection

• Requires external power supply: 5 to 24 VDC

• Transient Overvoltage Protection: 2,300 Vrms (bus to I/O channels)

• Built-in power distribution bus with breakout VSUP and COM terminals

• Dimensions: 5.00 x 2.60 x 0.94 in.

• Weight: 3.7 oz.

• Operating Temperature: –40 °C to +70 °C

• Storage Temperature: –55 °C to +100 °C

Applications:

• Industrial automation and process control
•  Direct interfacing with actuators and control units
•  Current loop control and monitoring
•  Distributed I/O systems
• Data acquisition and test environments

Why Choose the NI cFP-AO-200?
The cFP-AO-200 provides high-accuracy current output with built-in diagnostics to simplify system integration. Its protection features, including short-circuit resistance and open-circuit detection, ensure long-lasting and reliable operation in industrial environments.
