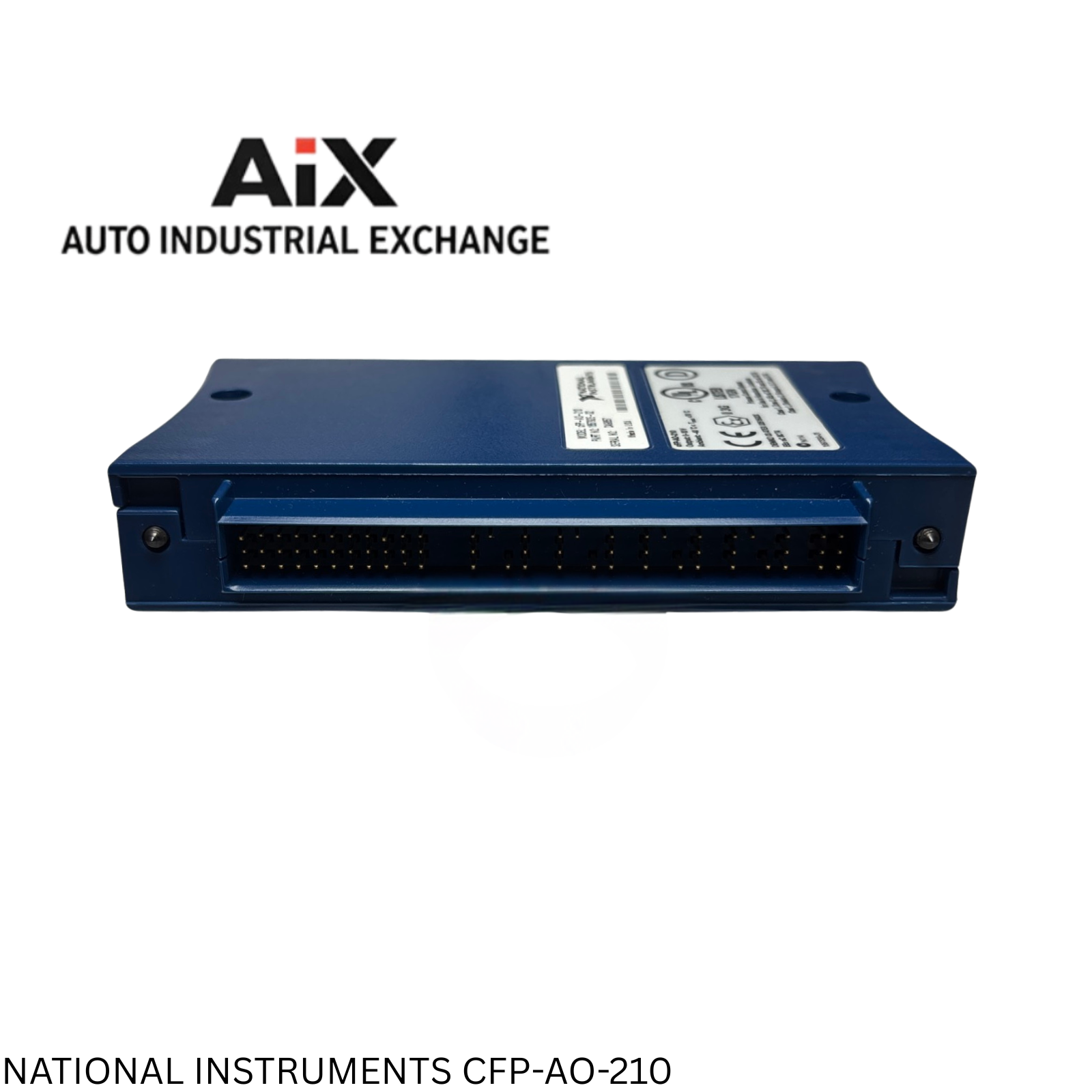

National Instrument CFP-AO-210 Compact FieldPoint 8 Channel Analog Module

National Instrument CFP-AO-210 Compact FieldPoint 8 Channel Analog Module

The National Instruments cFP-AO-210 (Part No. 777318-210) is a Compact FieldPoint Analog Output Module featuring 8 channels with 12-bit resolution. Each channel provides a 0 to 10 V voltage source capable of supplying up to 1 mA, or more than 10 mA when powered by an external 15–30 VDC supply. With an all-channel update rate of 200 Hz, the cFP-AO-210 delivers fast, accurate, and reliable analog output performance for industrial control and monitoring applications.

Key Features:

• Model: cFP-AO-210

• Part Number: 777318-210

• Channels: 8 Analog Output Channels

• Resolution: 12-Bit DAC

• Output Range: 0 to 10.2 V (with 0.2 V overranging for calibration)

• Output Current: 1 mA (internal power) or 10+ mA (external supply)

• Update Rate: 200 Hz (all channels)

• Conversion Rate: 200 updates/sec

• Slew Rate: 0.5 V/µs

• Status Indicators: Red channel LED when current exceeds limits

• Power: Supplied by terminal base, supports external supply (15–30 VDC)

• Dimensions: 5.00 x 2.60 x 0.94 in.

• Weight: 4.1 oz.

• Operating Temperature: –40 °C to +70 °C

• Storage Temperature: –55 °C to +100 °C

• Vibration Tolerance: 5 grms random, 5 g sinusoidal (10–500 Hz)

Applications:

•  Industrial process control
• Data acquisition systems
• Distributed I/O for automation
•  Analog signal generation
• Monitoring and testing environments

Why Choose the NI cFP-AO-210?
This Compact FieldPoint module provides high accuracy, flexible power options, and built-in error detection to ensure reliable operation in demanding applications. Its 0.2 V overranging feature helps compensate for field device errors, while channel monitoring and protection safeguard against overcurrent conditions.
