Ashcroft NPND0SC02 Digital Pressure Switch Transmitter | 0–3000 PSI | 4–20mA

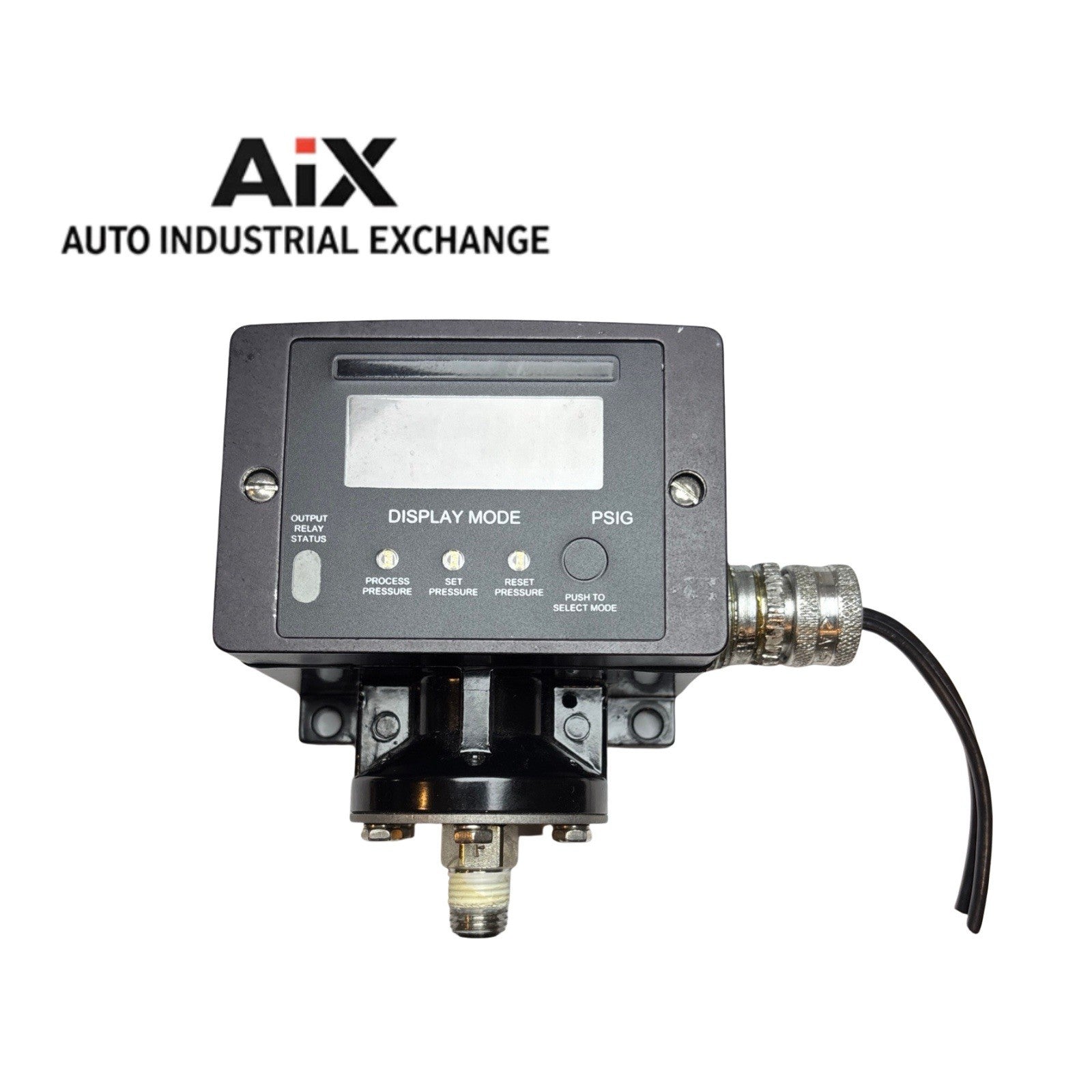

This is a genuine Ashcroft NPND0SC02 digital pressure switch transmitter, used and in good condition. It features an integrated LED display and digital interface for industrial pressure monitoring and control applications. Designed for high-reliability environments, this transmitter operates on standard 4–20mA current loop and includes settable pressure trip points.

Specifications:

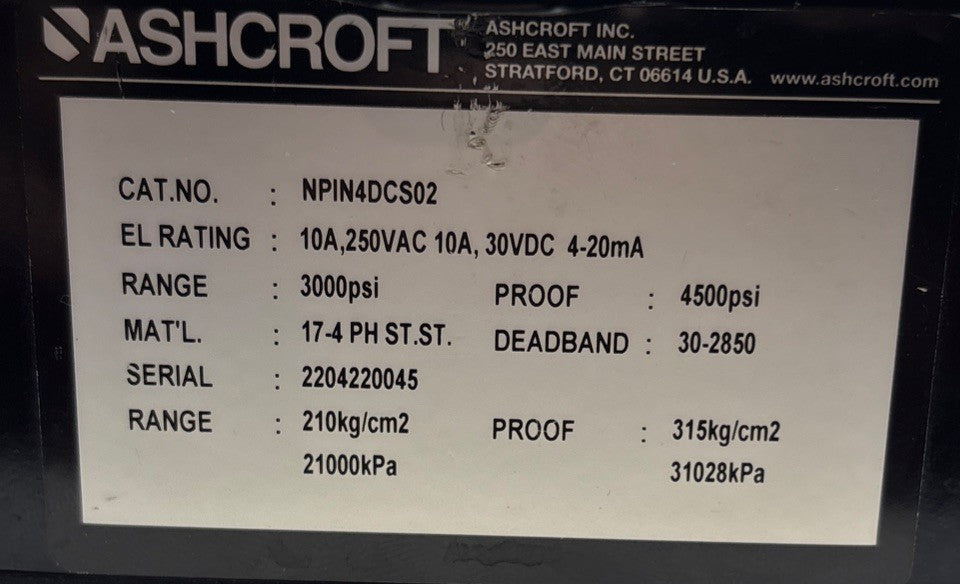

• Model: NPND0SC02

• Pressure Range: 0–3000 PSI (21000 kPa / 210 kg/cm²)

• Proof Pressure: 4500 PSI (31028 kPa / 315 kg/cm²)

• Signal Output: 4–20mA

• Electrical Rating: 10A @ 250VAC or 30VDC

• Connection Type: NPT Process Connection (appears to be 1/4” Male)

• Body Material: 17-4 PH Stainless Steel

• Sensor Wetted Parts: 316L SS

• Display Features:

• LED Display

• Modes: Process Pressure, Set Pressure, Reset Pressure

• Relay Output Status Indicator

• Deadband: 30–2850 PSI

• Power Requirements: 24VDC (typical industrial loop power)

Condition:

Used, pulled from a working industrial environment. Minor cosmetic wear consistent with previous use. No signs of internal damage. Display is clear, terminals intact, wiring appears clean and properly terminated. Connector port is secure.

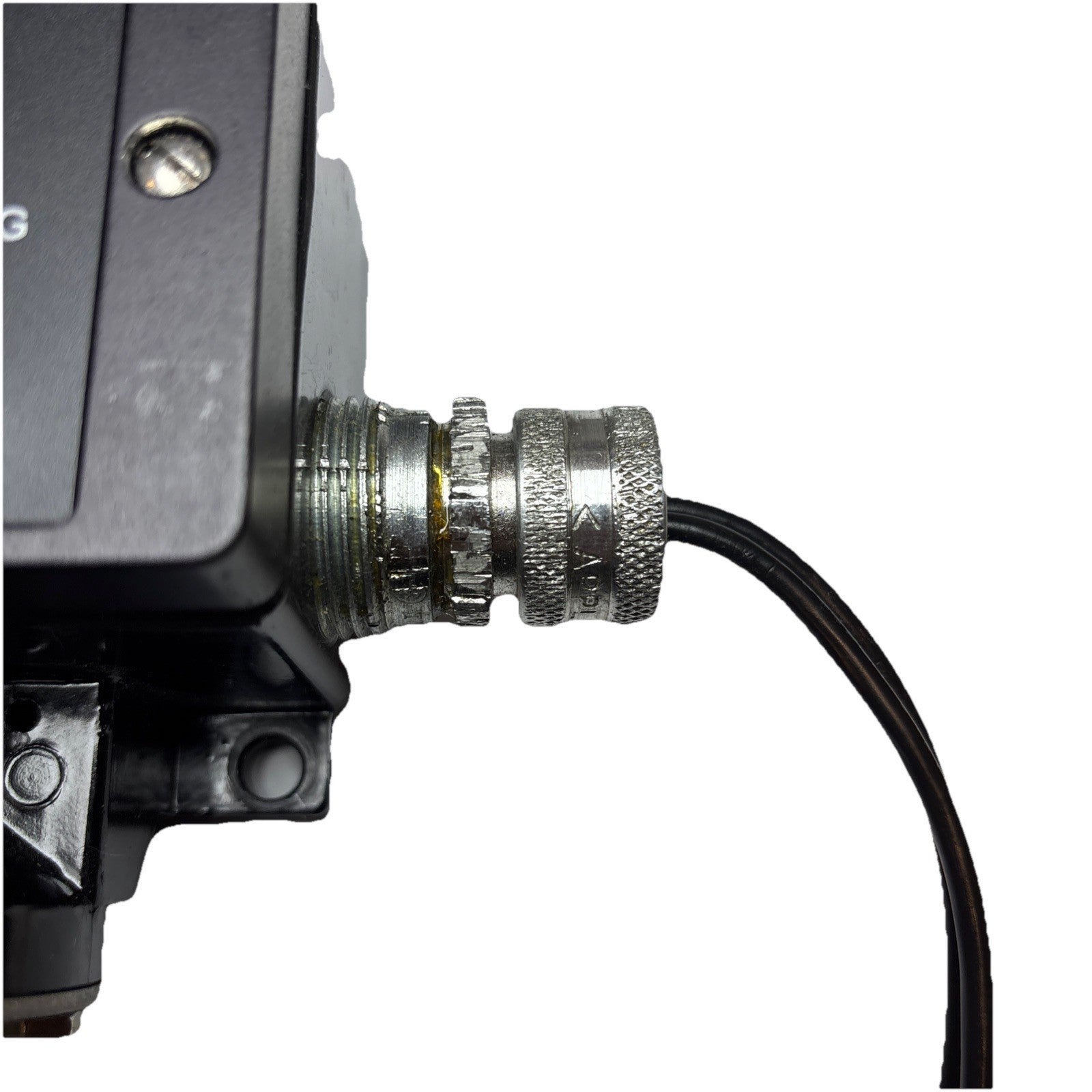

Notable Detail – Connector Wear:

The metal circular connector housing (shown in photo) has visible tool marks and wear on the knurled locking ring. The wear is cosmetic only and does not impact electrical performance or connectivity. Cable lead is intact and properly seated.

Applications:

• Industrial automation

• Process control

• Hydraulic systems

• OEM pressure monitoring

• Compressor and pump systems
